(ABM-A8105) Basic Model Steel Rule Auto Bender comprehendit functiones: Flexio, Pons, Lipping et Cutting.Supported ferrum regulae crassitudinis 0.45,0.53,0.71,1.05mm, altitudo 8-30mm.China Adewo duas officinas in Sinis habet, specialiter in enucleando et fabricando mori apparatum secantibus inclusis CNC Laser Machina secans, Machina Automatic Bender, Machina Credens Secans et sic in Packaging Industry.

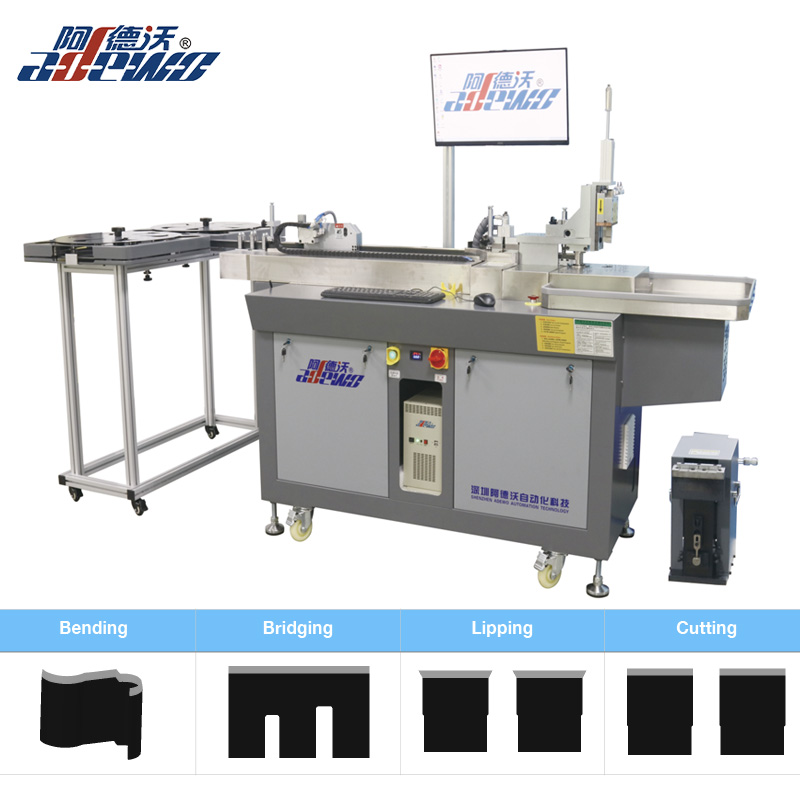

Picture of (ABM-A8105) Basic Model Steel Rule Auto Bender for reference:
2.(ABM-A8105) Basic Model Steel Rule Auto Bender utitur systemate motorico Panasonic Servo, princeps accuratae pilae cochleae systematis pascendi rector.
3.Smart programmata et facilia ad operandum, multi linguae operationes;
4. Tempus productionis salva et facilis ad mortem faciendam per (ABM-A8105) Basic Model Steel Rule Auto Bender.
|
Supported regulae crassitudine (mm) |
0.45/0.71/1.05mm |
|
Supported regulae altitudinis (mm) |
8-30mm |
|
Altitudo pontis |
15-18mm |
|
Pontis latitudo |
Plus 5mm magnitudinum quaelibet praesto. (customizableï¼ |
|
Min. ARC radius XC gradus |
±0.3MM |
|
Frons Min. curvus magnitudine |
1.5MM |
|
Retro Min. sectione magnitudine |
1.0MM |
|
Pascentium praecisione |
±0.03mm |
|
idipsum inclinans |
±0.2mm |
|
Munera |
Inflexio, Bridging, Offline Pneumatica |
|
Secans modos |
Torquent et Auto plana sectionem |
|
Optimal forma forma |
DXF,DWG |
|
Aeris copiam |
0.4-0.8mpa |
|
Potentia copia |
Unius Phase AC220V,13.6A,50-60Hz |
|
Machina summa potentia |
3KW |
|
Pondus |
458KGS |
|
Altiore dimensionis |
2.1×0.81×1.22m(L×W×H) |
|
H.S. Code |
8462219000 |
