(ABM-860B6) calculis foraminis High Regula Auto Bender Machina interiori Nick inclusa functionibus：Bending, Pons, Nicing, Perforatio, Lipping et Secans. Ferri regula sustinetur crassitudo 0.71,1.05mm, altitudo 23.80-60mm. Sinis Adewo duas officinas in Sinis habet, praesertim in evolutione et fabricandis instrumentis secandis interiectis CNC Laser Machina secans, Machina Automatic Bender, Machina Credens Secans et sic in Packaging Industry.
Auto Bender Machine
Video de In-Site Customer's Company

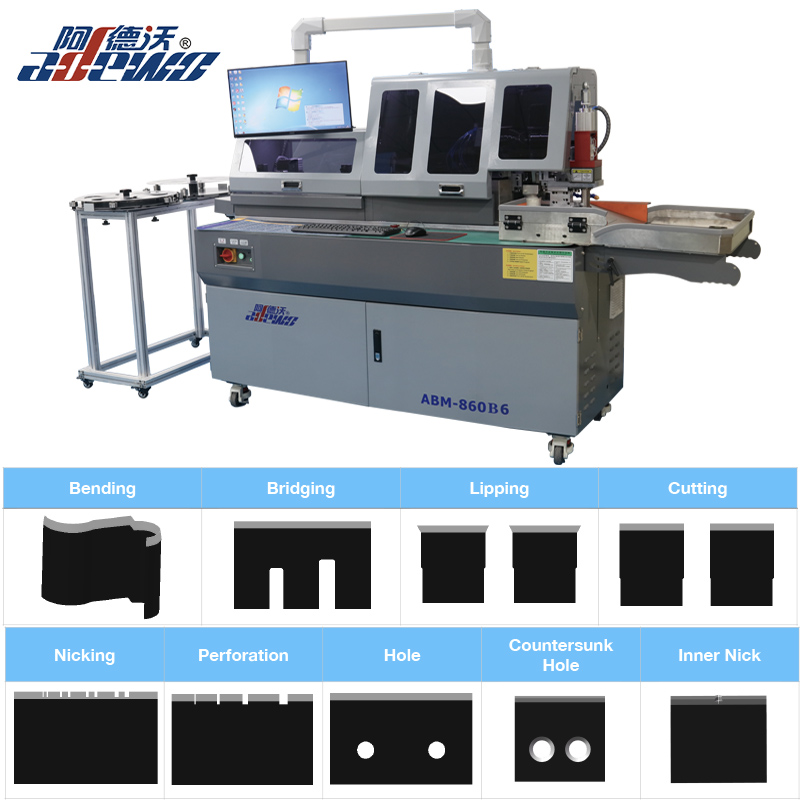

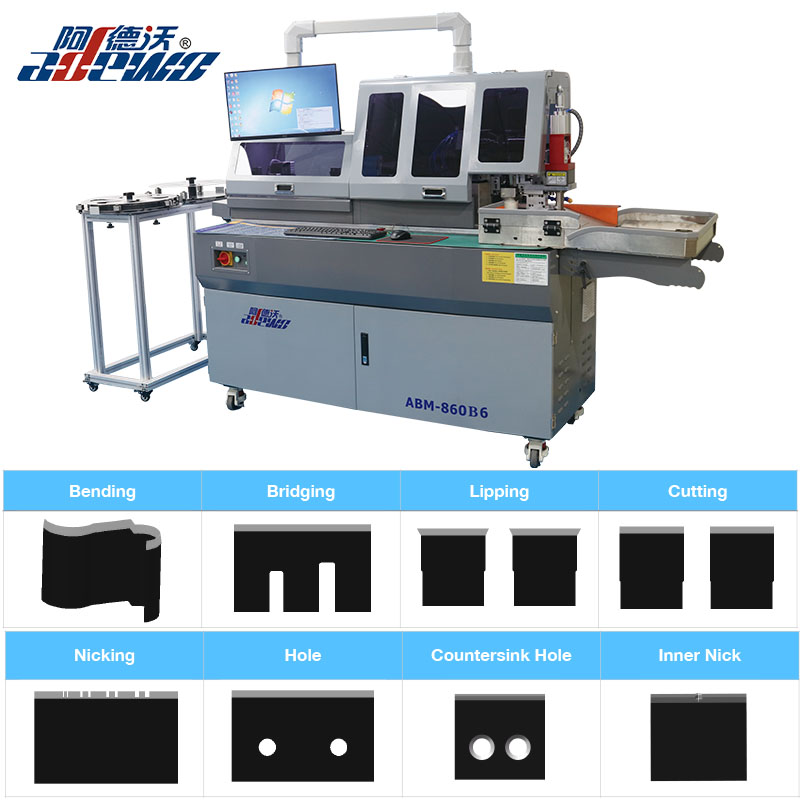

Imaginem (ABM-860B6) transink foramen Maximum Regulam Auto Bender Machina referendi:
1. Flexio et sectio in uno, magis salus sectionis. Maximum efficientiam inflexionis et secandi.
2. Multi-Punch instrumentum electionis:Lipping, Molde Cut, Pons, Foramen vel Perforatio, instrumentum independentis, facile restituo.

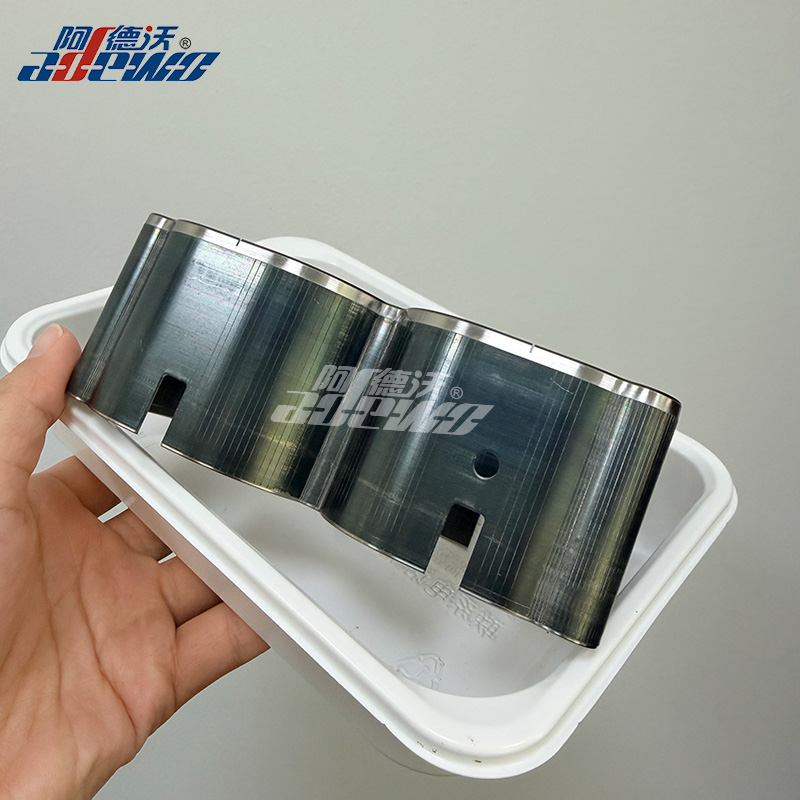

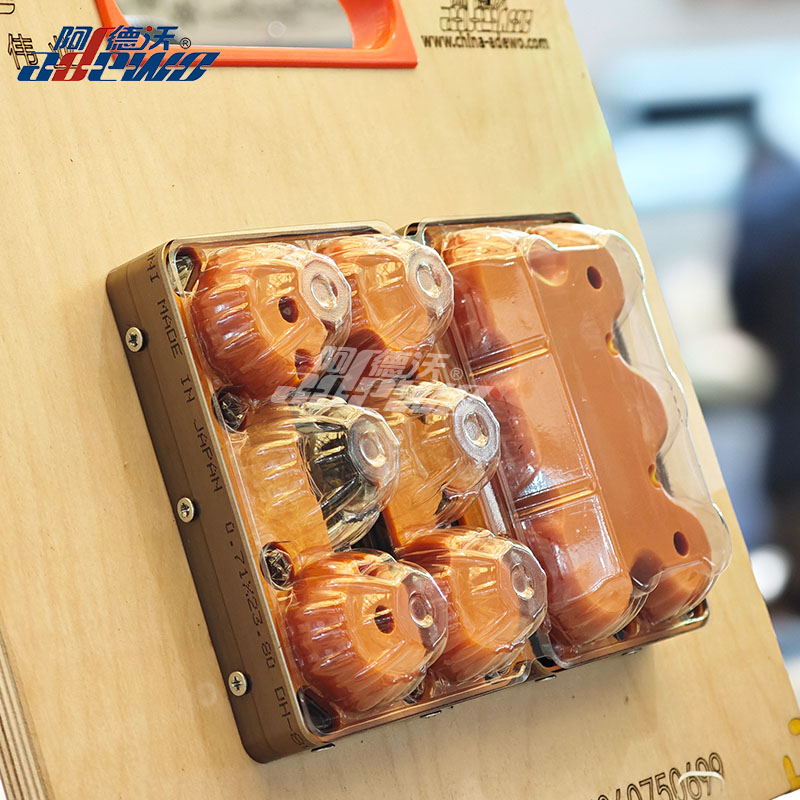

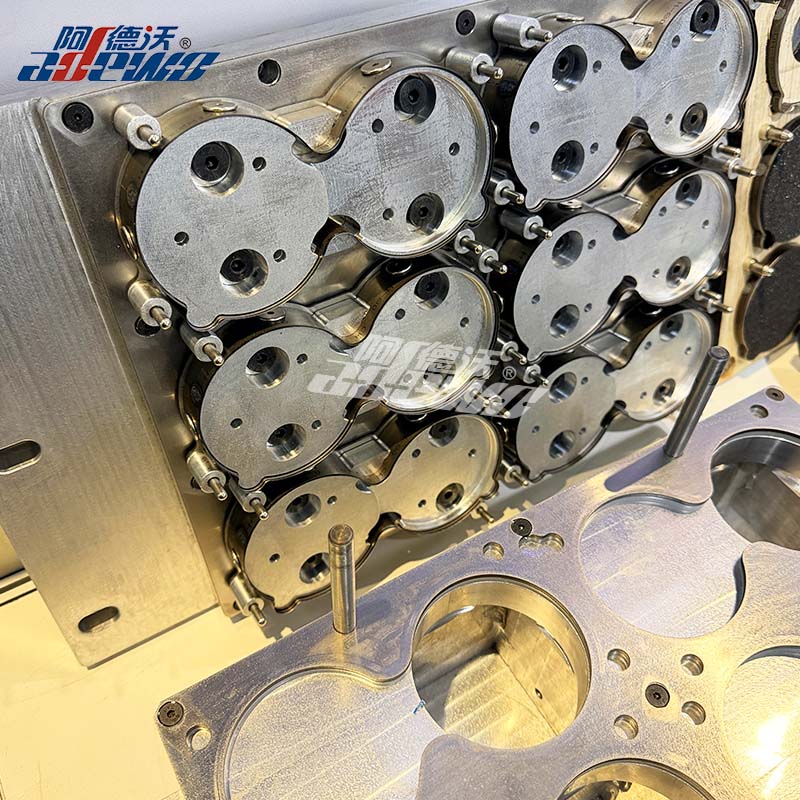

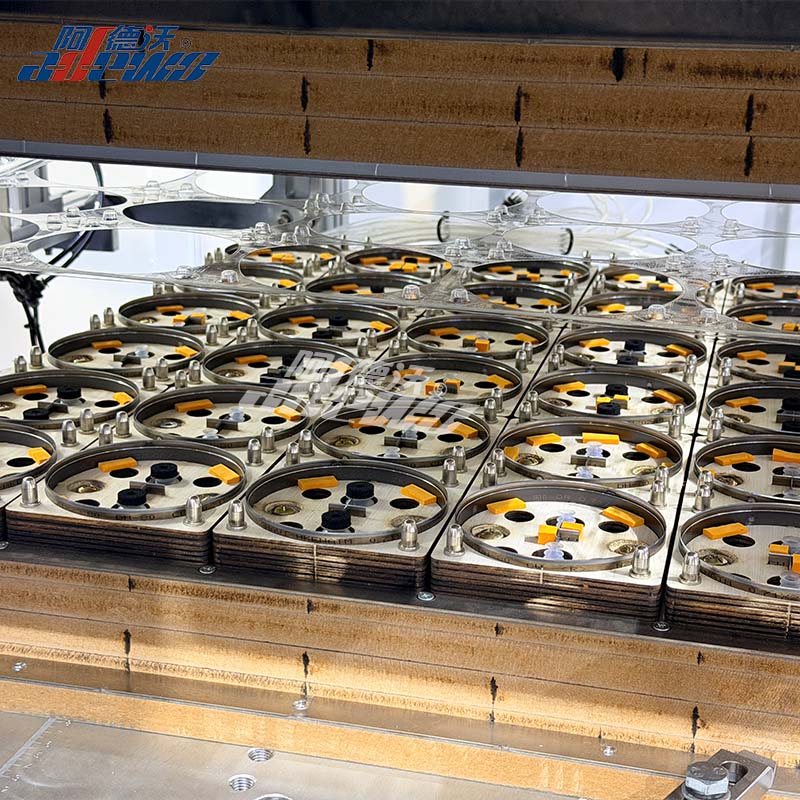

3. Speciatim elaborata pustula moritur, thermoformans moritur, utriusque lateris foramine calculis. Minimum Nicking 0.2mm.
4. Duplex fibulationes, cochlea duce pascens continenter, efficientiam laboris meliorem facit.
5.Smart programmata facilia ad operandum, multae linguae in promptu sunt.
|
Supported regulae crassitudine (mm) |
0.71,1.05mm (2pt&3pt) |
|
Supported regulae altitudinis (mm) |
23.80-60mm |
|
Frons Min. curvus magnitudine |
1.5MM |
|
Retro Min. sectione magnitudine |
1.0MM |
| Maximilianus. inflexio angulus | 100° |
|
Pascentium praecisione |
±0.03mm |
|
idipsum inclinans |
0.2mm |
|
Basic functiones |
Curva, Pons, Nicing, Lipping, Secans, Perforatio, Foramen, Countersun Foramen, Internus Nick |
|
Ad libitum functiones |
Perforatio, Hole |
|
Optimal forma forma |
DXF,DWG,CF2 |
|
Aeris copia |
0.4-0.8MPa |
|
Potentia copia |
AC220V,13.6A,50-60Hz |
|
Machina summa potentia |
3KW |
|
Pondus |
670KG |
|
Altiore dimensionis |
3000x950x1680mm(LxWxH) |
|
H.S. Code |
8462230000 |
Nostra technica opera semper praesto est services@china-adewo.com
